Cube Beamsplitter

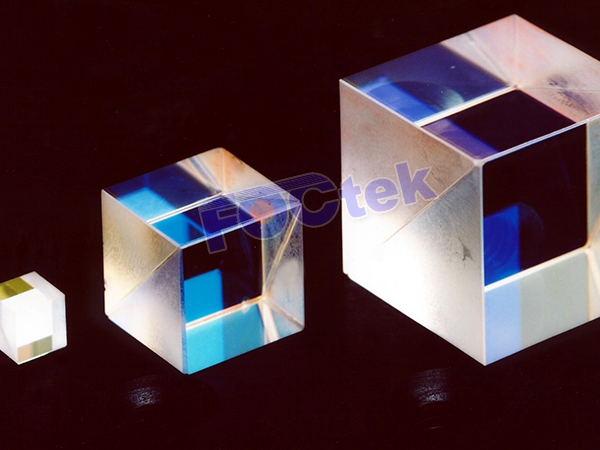

Cube beamsplitters are constructed by cementing two precision right angle prism together with appropriate interference coating on the hypotenuse surface. The absorption loss to the coating is minimal transmission and reflection approach 50% (average) though output is partially polarized. If polarization sensitivity is critical to your online_ordering, we recommended that you select from our Polarization Cube Beamsplitter or Non-polarization Cube Beamsplitter.

Material: ----------------------------------------- N-BK7 or H-K9L Grade A optical glass

Dimension Tolerance: --------------------------------------------------------------- ±0.2mm

Flatness: ------------------------------------------------------------------------ l/4@632.8nm

Surface Quality: ----------------------------------------------------- 60-40 scratch and dig

Beam Deviation: ------------------------------------------------------------- <3 arc minutes

T/R: --------------------------------------------------- 50/50±5%, for random polarization

--------------------------------------------------------------- T=(Ts+Tp)/2, R=(Rs+Rp)/2

Coating: Hypotenuse Face: ------------------------------ Partial Reflectance coating

All Input and Output Faces: --------------------------------------------------- AR Coating

Standard Coating wavelength:

Narrow Band: ----- 488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm

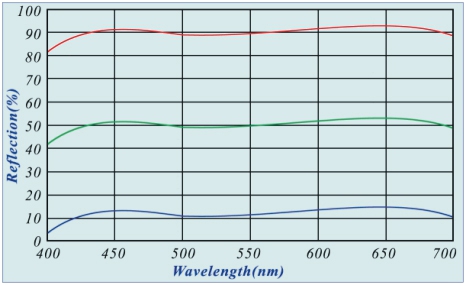

Broadband: ---------- 450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm

Standard Size:

Size(mm)	Narrow Band	Broadband
Size(mm)	Part No.	Part No.
3.2x3.2x3.2	BSC1101	BSC1201
5x5x5	BSC1102	BSC1202
10x10x10	BSC1103	BSC1203
12.7x12.7x12.7	BSC1104	BSC1204
15x15x15	BSC1105	BSC1205
20x20x20	BSC1106	BSC1206
25.4x25.4x25.4	BSC1107	BSC1207

Ordering Information:
Part No. - Wavelength
For example, BSC1203 -1500-1610nm
Beamsplitter Cube 10X10X10mm, 1500-1610 nm broadband coating

Note for Cube BeamSplitter:

1.Custom-made non-standard Beamsplitter Cube at any size (from 2.0x2.0x2.0mm to 50.0x50.0x50.0mm)

is available upon request.

2.Besides N-BK7, Custom-Made Beamsplitter Cube, which is made of other optical material, such as Fused

Silica, Pyrex, is available upon request.

3.High Precision Beamsplitter Cube with better Flatness (<l/8), Better Surface Quality (better than 20/10)

and Better Beam Deviation (<1’) is available upon request.

4.Besides 50/50, non-standard splitting ratio (from T/R=90/10 to 10/90) is available upon request.
