Non-polarizing Cube Beamsplitter

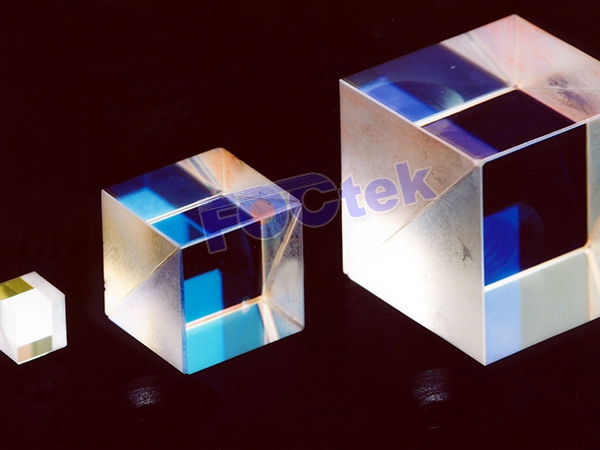

Consists of a pair of precision high tolerance right angle prisms cemented together with a metallic-dielectric coating on the hypotenuse of one of the prisms. The low polarization dependence of the metallic-dielectric coating allows the transmission and reflection for S- and P- polarization states to be within 6% of each other. This means that they will not change the state of polarization of the incident beam.

We offer both broadband and single wavelength non-polarizing cube beamsplitters (NPBS). An antireflective coating has beem applied to each face of the beamsplitter in order to produce maximum transmission efficiency for the appropriate wavelength range.

Broadband NPBS Specification:

Material:------------------------------------------------------------------------- N-BK7 grade A, optical glass

Dimension Tolerance:-------------------------------------------------------- ±0.2mm

Flatness:-------------------------------------------------------------------------l/4 @ 632.8 nm per 25mm

Surface Quality:----------------------------------------------------------------60/40 scratches and dig

Beam Deviation:---------------------------------------------------------------<3 arc minutes

Clear Aperature:--------------------------------------------------------------- 90%

Bevel:-----------------------------------------------------------------------------<0.3 mm X 45 deg

Coating: Hypotenuse Face: ------------------------------------------------NPBS Coating

All Input and Output Faces:-------------------------------------------------AR Coating

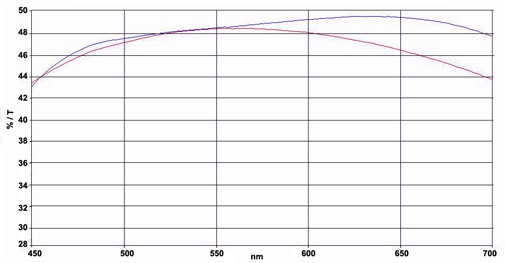

Splitting Ratio: ---------------------------------------------------------------- Tp/Rp=Ts/Rs=45%±5%

Polarization:-------------------------------------------------------------------- |Tp-Ts|<6%, |Rp-Rs|<6%

Absorption:----------------------------------------------------------------------<10%

AR Coating:--------------------- Ravg<0.5 @450-680nm, Ravg<0.5%@700-1000nm, Ravg<0.5%@1300-1600nm

Standard Wavelength: 450-680nm, 700-1000nm, 1300-1600nm.

Size(mm)	Part NO.
5.0x5.0x5.0	NPB1201
10.0x10.0x10.0	NPB1202
12.7x12.7x12.7	NPB1203
20.0x20.0x20.0	NPB1204
25.4x25.4x25.4	NPB1205
30.0x30.0x30.0	NPB1206
40.0x40.0x40.0	NPB1207
50.8x50.8x50.8	NPB1208

Note: Other sizes, split ratio and coating are available upon request.

Ordering Information:
Part No. - wavelength
For example, NPB1202-450~680 nm
Polarization Beamsplitter Cube 10x10x10 mm, 1500-1610 nm broadband coating
