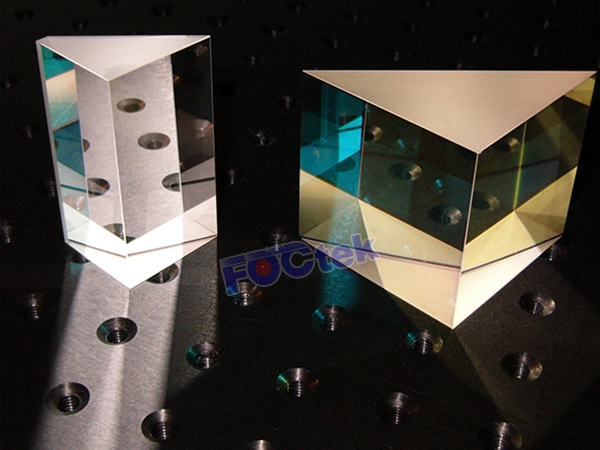

Right Angle Prisms

Right angle prism is also called half cube prism or isosceles.

Besides standard Right Angle Prisms made of N-BK7 or Fused Silica, Foctek also offers custom-made Right Angle Prisms:

● Materials such as H-ZF1, H-ZF13, N-SF11, Pyrex, Sapphire and other optical glass and crystals are available.

● Size from 1.0x1.0x1.0mm to 300.0x300.0x300.0mm are available.

● Angle tolerance such as 3 min., 1min., 30sec., 10sec., 5sec., 3sec., 1sec., 0.5sec. is available.

● AR, HR, PR coating are available.

N-BK7 Right Angle Prism

Attribute	Specification
Material	BK7 Grade A optical glass
Dimension (mm)	1.0x1.0x1.0 ～ 100.0x100.0x100.0
Dimension Tolerance (mm)	+0.0/-0.2 (General), +0.0/-0.05 (High Precision)
Clear Aperture	>80% (Small Size), >95% (Large Size)
Angle Tolerance (degree)	<3 min. (General), <0.5 sec. (High Precision)
Flatness @633nm	λ/2 (General), λ/4 (High Precision)
Surface Quality	60/40 (General), 10/5 (High Precision)
Bevel (mm)	0.1 ～ 0.5
Coating	uncoated, AR, PR, HR Coating, etc.

Note for N-BK7 Right Angle Prism:
(1). Typical dimension is 2.0mm, 3.2mm, 5.0mm, 10.0mm, 12.7mm, 15.0mm, 20.0mm, 25.4mm, 30.0mm,
dimension from 1.0x1.0x1.0 mm to 300x300x300 mm is available.
(2). Better precision such as 1 min., 30sec., 15sec., 10sec., 5sec., 3sec., 1sec., 0.5sec. is available.
(3). Typical bevel is 0.25x45^o, other bevel from 0.1x45^oto 0.5x45^o is available upon request.
(4). Anti-Reflective(AR), High-Reflective(HR), Partial-Reflective(PR) coating is available.

Fused Silica Right Angle Prisms

Attribute	Specification
Material	UV Fused Silica
Dimension (mm)	1.0x1.0x1.0 ～ 300.0x300.0x300.0
Dimension Tolerance (mm)	+0.0/-0.2 (General), +0.0/-0.05 (High Precision)
Clear Aperture	>80% (Small Size), >95% (Large Size)
Angle Tolerance (degree)	<3 min. (General), <0.5 sec. (High Precision)
Flatness @633nm	λ/2 (General), λ/4 (High Precision)
Surface Quality	60/40 (General), 10/5 (High Precision)
Bevel (mm)	0.1 ～ 0.5
Coating	uncoated, AR, PR, HR Coating, etc.

Note for Fused Silica Right Angle Prism:
(1). Besides Fused Silica, custom-made Right Angle Prisms, which are made of other optical materials,
such as N-BK7, N-SF11, Pyrex, etc. are available.
(2). Typical dimension is 5.0mm, 10.0mm, 12.7mm, 15.0mm, 20.0mm, 25.4mm, 30.0mm, dimension from
1.0x1.0x1.0 mm to 300.0x300.0x300.0 mm is available.
(3). Better precision such as 1 min., 30sec., 15sec., 10sec., and 5sec., 3sec., 1sec., 0.5sec. is available.
(4). Typical bevel is 0.25mmx45^o, other bevel from 0.1mmx45^o to 0.5mmx45^ois available upon request.
(5). Anti-Reflective(AR), High-Reflective(HR), Partial-Reflective(PR) coating prisms are available.
