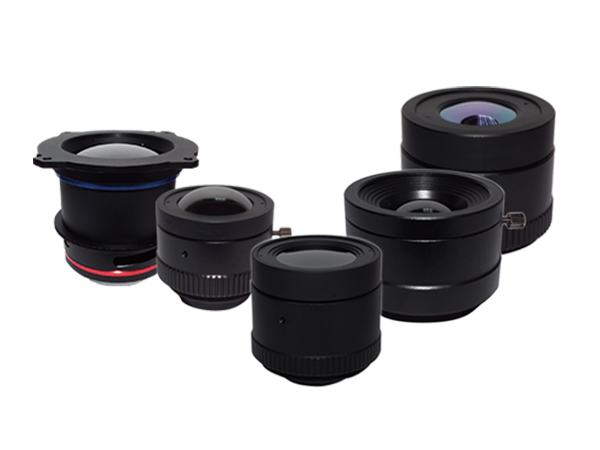

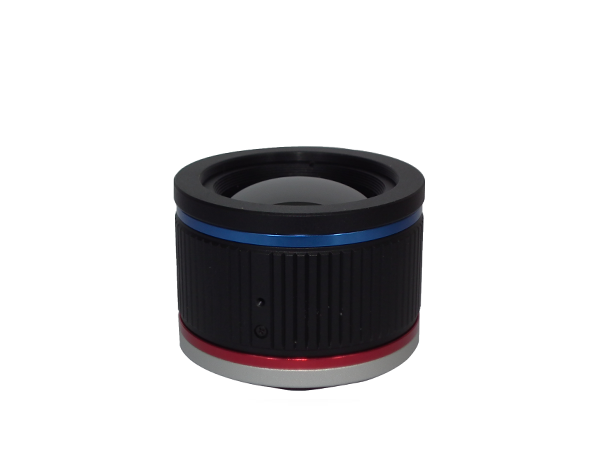

Long Wavelength Infrared Fixed Focus lenses



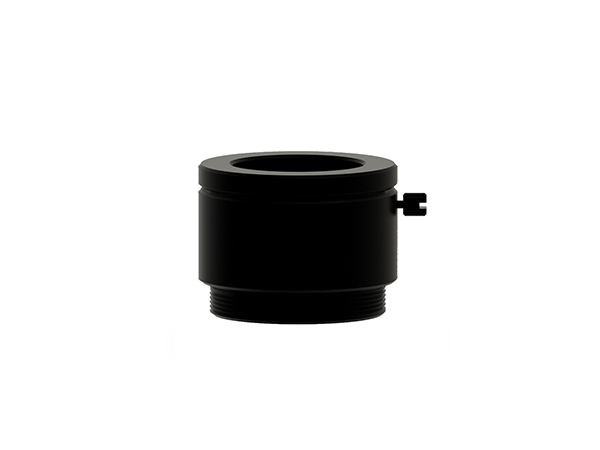

50mm

50mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20606M
Optical Parameter Value
Focal Length   50mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M45x1-6g

Dimension Φ64xL72.9mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV

384x288,17μm 9.4°x7.6°x5.6°
640x512,12μm 11.2°x8.8°x7°
640x480,17μm 16.1°x12.5°x10°

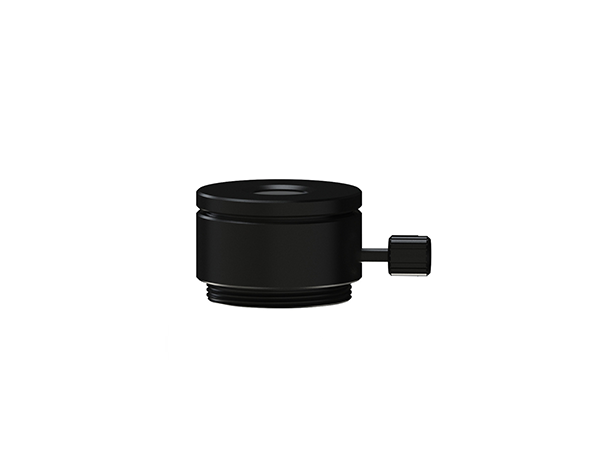

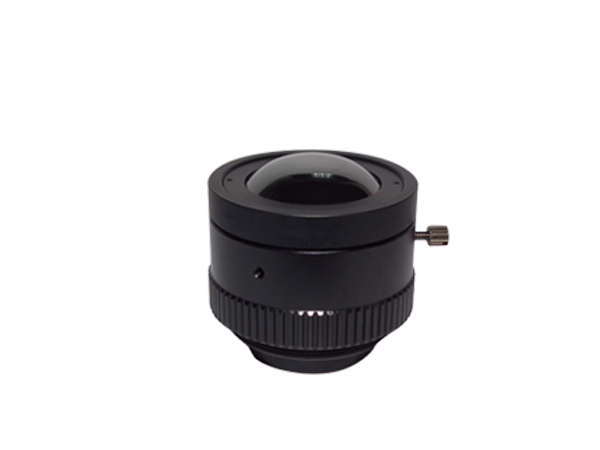

35mm

35mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20619
Optical Parameter Value
Focal Length   35mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M34x0.75-6g

Dimension Φ42.5xL47.8mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 11.8°x9.4°x7.1°
384x288,17μm 13.4°x10.6°x8°
384x288,25μm /
640x480,17μm /

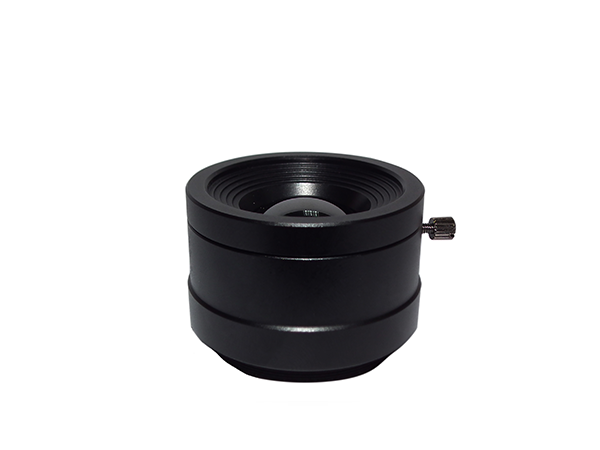

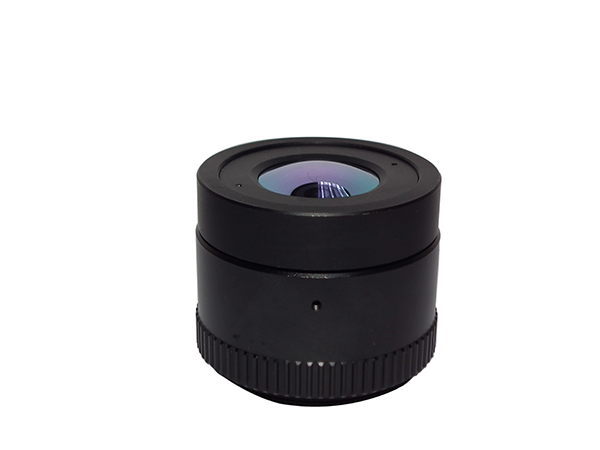

25mm

25mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20618
Optical Parameter Value
Focal Length   25mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M34x0.75-6g

Dimension Φ39.8xL43.6~45.2mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 16.5°x13.2°x10°
384x288,17μm 18.8°x15°x11.3°
384x288,25μm /
640x480,17μm /

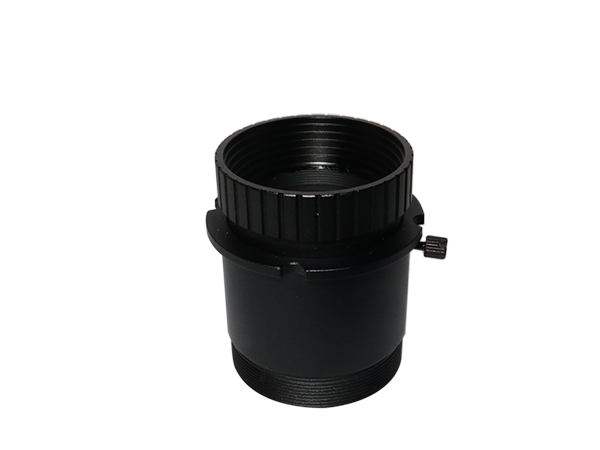

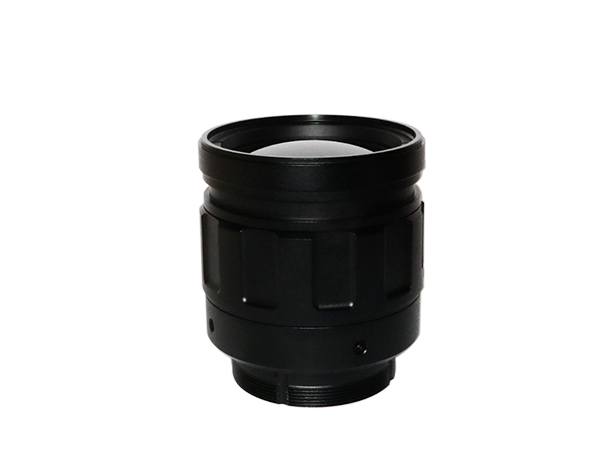

7.5mm

7.5mm
  • F1.0
  • 8~14μm
PDF Download
LWIR20601
Optical Parameter Value
Focal Length   7.5mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M43x0.75-6g

Dimension
Φ48xL39.18mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 56°x44°x33°
384x288,17μm 65°x51°x33°
384x288,25μm 99°x76°x56°
640x480,17μm
116.4°x88°x64°

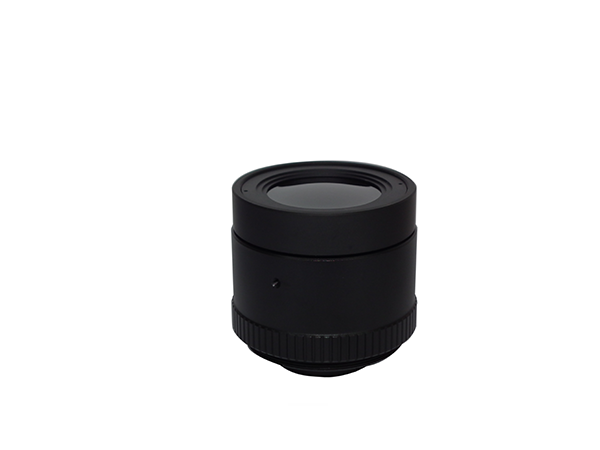

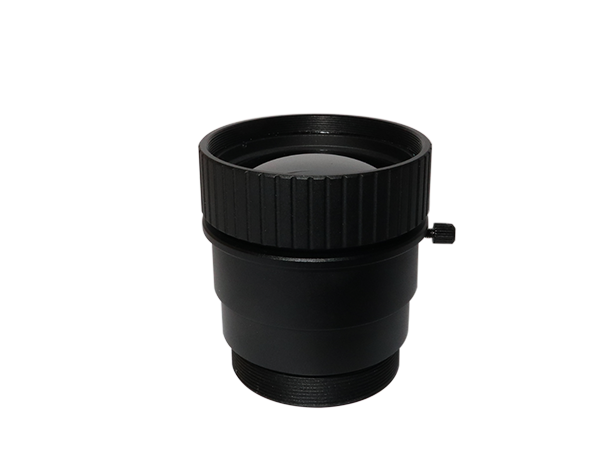

35mm

35mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20602
Optical Parameter Value
Focal Length   35mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M37x0.5-6h

Dimension Φ53.4xL43.9mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 12°x9.6°x7.2°
384x288,17μm 13.4°x10.7°x8°
384x288,25μm 19.6°x15.7°x11.8°
640x512,17μm 22.8°x17.8°x14.2°

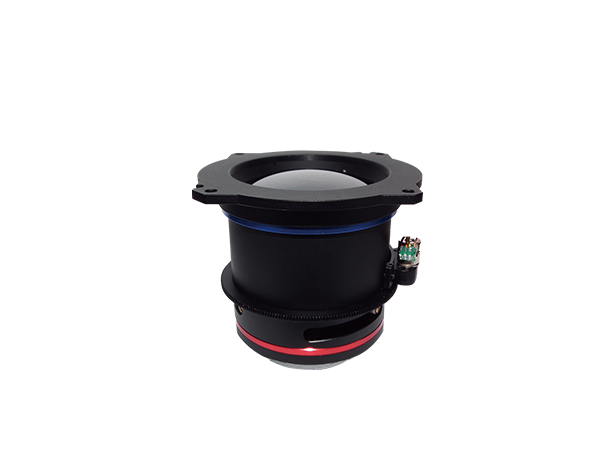

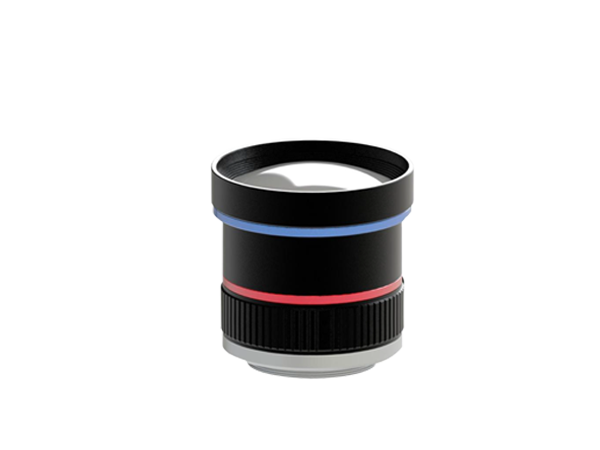

75mm

75mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20603-E
Optical Parameter Value
Focal Length   75mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Motorized
Focus range /
Mount Type

M45x1-6g

Dimension Φ104.4xL98.6mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 5.5°x4.4°x3.3°
384x288,17μm 6.2°x5.0°x3.7°
384x288,25μm 9.1°x7.3°x5.5°
640x512,17μm 10.6°x8.3°x6.6°




13mm

13mm
  • F1.0
  • 8~14μm
PDF Download
LWIR20604
Optical Parameter Value
Focal Length   13mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M34x0.5-6g

Dimension Φ39xL28.9mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 32°x25.4°x19°
384x288,17μm 36.5°x29°x22°
384x288,25μm 54.9°x43.6°x32°
640x512,17μm 64.8°x49.2°x39°




25mm

25mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20605
Optical Parameter Value
Focal Length   25mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M43x0.75-6g

Dimension Φ49xL48.1mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 17°x13°x10°
384x288,17μm 19°x15°x11.3°
384x288,25μm 28°x22°x16.7°
640x480,17μm 32°x25°x18.9°

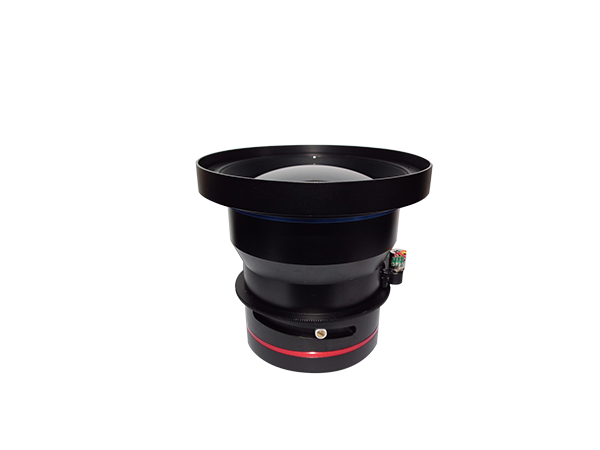

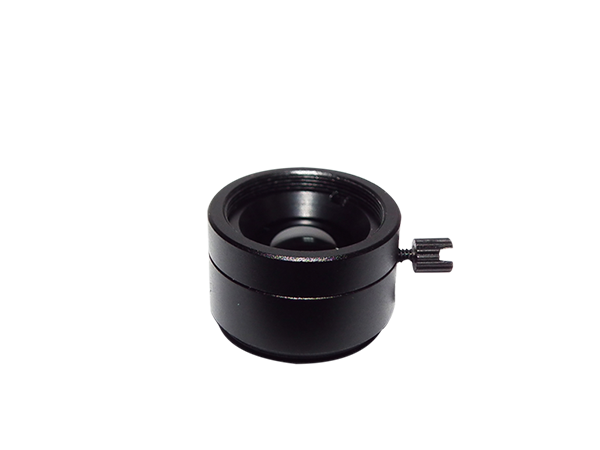

50mm

50mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20606-E
Optical Parameter Value
Focal Length   50mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Motorized
Focus range /
Mount Type

M45x1-6g

Dimension Φ64xL81.57mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 8.3°x6.6°x5.0°
384x288,17μm 9.4°x7.6°x5.6°
384x288,25μm 13.8°x11.1°x8.3°
640x512,17μm 16.1°x12.5°x10.0°




19mm

19mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20609
Optical Parameter Value
Focal Length   19mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M30x0.75-6g

Dimension Φ34xL25.7mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 21.6°x17.2°x13.1°
384x288,17μm 24.54°x19.64°x14.7°
384x288,25μm 35.6°x28.64°x21.6°
640x512,17μm 40.6°x32.3°x26.1°




3.6mm

3.6mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20610
Optical Parameter Value
Focal Length   3.6mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M14x0.5-6g

Dimension Φ16xL10.61mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
256x192,12μm 59.8°x48.0°x36.0°
384x288,17μm 139.2°x104.3°x76.5°
384x288,25μm /
640x512,17μm /




7.1mm

7.1mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20611
Optical Parameter Value
Focal Length   7.1mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M14x0.5-6g

Dimension Φ15xL11.03mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
256x192,12μm 31.3°x25.1°x19.0°
384x288,17μm 68.0°x53.7°x40.0°
384x288,25μm /
640x512,17μm

4.8mm

4.8mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20612
Optical Parameter Value
Focal Length   4.8mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M34x0.75-6g

Dimension Φ40xL38.2mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 41.0°x33.0°x25.2°
384x288,17μm 46.0°x38.0°x28.5°
384x288,25μm 67.0°x54.0°x41.3°
640x512,17μm 76.0°x61.0°x45.5°




50mm

50mm
  • F1.0
  • 8~14μm
PDF Download



LWIR20613
Optical Parameter Value
Focal Length   50mm
F# 1.0
Transmission(8-12μm) ≧86%
Wavelength 8~14μm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

M37x0.75-6g

Dimension Φ57xL55.76mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
336x256,17μm 8.22°x6.52°x4.9°
384x288,17μm 9.34°x7.5°x5.6 °
384x288,25μm 13.8°x11.1°x8.3°
640x512,17μm 16°x12.5°x9.9°
