High Transmission Glan Laser Polarizers

High Transmission Glan Laser Polarizers

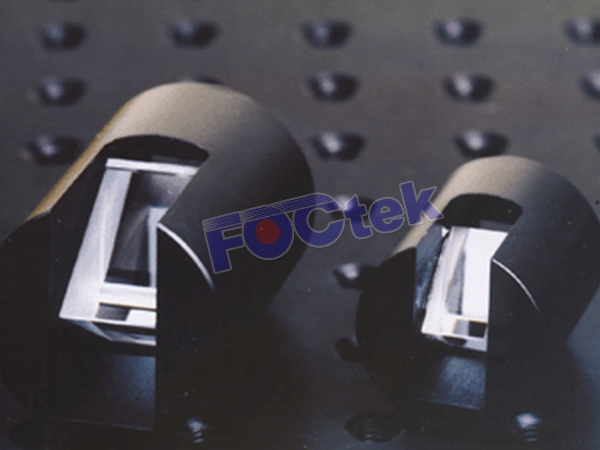

FOCtek specially designed a high transmission Glan Laser Polarizer for online_ordering which requires high transmission. The specially designed polarizer is based on the Brewster Cut crystal, which can improve the transmission from normally >85% to 95%. This polarizer can be made from both Calcite and YVO4.

Features:

  • Air-spaced
  • All Brewster's angle Cutting.
  • Mounted with escape windows.
  • High Polarization purity.
  • Suitable for high power online_orderings.
  • High transmission.
  • Brewster angle input.

Specifications:

Material: Calcite or YVO4
Wavelength Range: Calcite: 350-2300 nm, YVO4: 400-4000 nm
Extinction Ratio: Calcite:<5x10 -5 ; YVO4:<5x10 -6
Parallelism: <1 arc Min
Surface Quality: 20-10
Beam Deviation: < 3 arc minutes
Wavefront Distortion: l/4@633nm
Damage Threshold: >500 MW/cm 2
Coating: Uncoated
Transmission: >95%
Mount: Black Anodized Aluminium

Standard Products

1. Calcite High Transmission Glan Laser Polarizer

Part No. Wavelength Rang(nm) Extinction Ratio C.A. Φ a (mm) O.D. Φ d (mm) L±0.1(mm)
GLH7006 350-2300 <5x10 -5 5 25.4 11.3
GLH7008 7 25.4 14.8
GLH7010 9 25.4 18.4
Note: "RFQ" stands for "Request For Quoting".

2. YVO4 Glan Laser Polarizer

Part No. Wavelength Rang(nm) Extinction Ratio C.A. Φ a (mm) O.D. Φ d (mm) L±0.1(mm)
GLH8006 400-5000 <5x10 -6 5 25.4 13.2
GLH8008 7 25.4 17.6
GLH8010 9 25.4 22
Note: "RFQ" stands for "Request For Quoting".

Call for OEM quantity pricing and Custom Design Polarizer.
A wide variety of custom design High Transmission Glan Laser Polarizer are available upon request
Custom Size Mount is available upon request
AR coated Polarizer is available upon request
