Polarization Rotators

Polarization Rotators

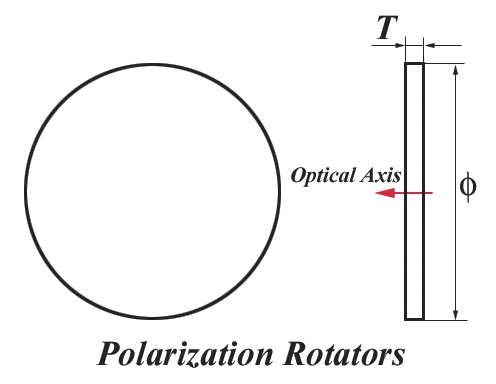

Polarization roators offer 45deg or 90deg rotation at a number of common laser wavelength, the optical axis in a polarization rotator is perpendicular to the polished face of the optic. The result is that the orientation of in put linearly polarized light is rotated as it propagates through the device.

Specifications:

Material: ----------------Optical Grade Crystal Quartz
Dimension tolerance: ----------------+0.0, -0.2mm
Wavefront distortion: ----------------< l /4@633nm
Wavelength range:-------------------------------- 440-1600nm
Retardation accuracy: ----------------<5  minutes
Surface quality: ----------------20-10
Clear aperture:-------------------------------- Central 90%
AR coating: ----------------R<0.2% @ central wavelength
Rotation orientation:---------------- counter-clockwise

Standard wavelength: 532nm, 632.8nm, 1064nm:

Rotator P/N# Diameter (mm) Rotation (Deg) Price/pc in US$ for different pcs range
qty<=5 5<qty<=10 10<qty<=20 qty>20
WPR4512 12.7 45 $49 $41 $34 RFQ
WPR4515 15 45 $55 $46 $39 RFQ
WPR4520 20 45 $63 $53 $45 RFQ
WPR4525 25.4 45 $69 $59 $49 RFQ
WPR9012 12.7 90 $69 $59 $48 RFQ
WPR9015 15 90 $63 $53 $44 RFQ
WPR9020 20 90 $69 $59 $49 RFQ
WPR9025 25.4 90 $79 $59 $58 RFQ

Note:"RFQ"satands for "Request For Quoting"
