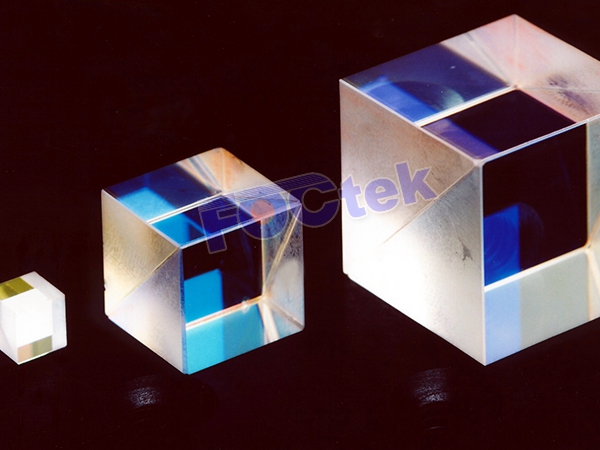

High Extinction Polarization Cube BeamSplitter

High Extinction Polarization Cube BeamSplitter

TP : TS > 1000:1 for Broad band
TP : TS > 3000:1 for Narrow band

High Extinction PBS

Specification

Dimension Tolerance: ------------------------------------------------------------ ±0.2mm
Flatness: --------------------------------------------------------------------- l/4@632.8nm
Surface Quality: -------------------------------------------------- 60-40 scratch and dig
Beam Deviation: ---------------------------------------------------------- <3 arc minutes
Extinction Ratio: ----------------------------------- TP : TS > 1000:1 for Broadband
                                                                              TP : TS > 3000:1 for Narrowband
Principal Transmittance: -----------------Tp>90%  for Broadband♦
                                                                    Tp>96%  for Narrowband
Principal Reflectance: --------------------------------------------------------- Rs>99.5%
Coating: Hypotenuse Face: ------------------- Polarization Beamsplitter Coating
All Input and Output Faces: ------------------------------------------------ AR Coating

♦Principal Reflectance for 450~680nm : Tpavg>90%(Broadband )

                  PBS  @ 633+/-20nm.Tp>96%, Tp:Ts>30001

 Narrowband
Material: -------------------------------------- N-BK7 or H-K9L Grade A optical glass
Standard wavelength: ---------- 532,  633, 980, 1064 nm (other wavelength is available upon request)

Size(mm)
Part No.
Unit Price
3.2x3.2x3.2
PBS1301
$89.0
5x5x5
PBS1302
$89.0
10x10x10
PBS1303
$99.0
12.7x12.7x12.7
PBS1304
$99.0
15x15x15
PBS1305
$119.0
20x20x20
PBS1306
$139.0
25.4x25.4x25.4
PBS1307
$149.0

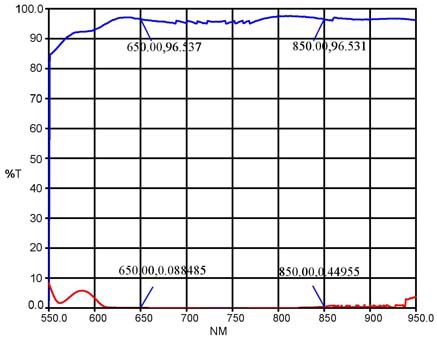

Broadband
Material: -------------------------------------------------------N-SF2 or H-ZF1 optical glass , material for PBS(450-680nm)  is H-ZF2 (N-SF5).
Coating wavelength: 450-680, 650-850, 900-1200 (other wavelength is available upon request)

Size(mm)
Part No.
Unit Price
3.2x3.2x3.2
PBS5301
$109.0
5x5x5
PBS5302
$109.0
10x10x10
PBS5303
$129.0
12.7x12.7x12.7
PBS5304
$129.0
15x15x15
PBS5305
$149.0
20x20x20
PBS5306
$159.0
25.4x25.4x25.4
PBS5307
$169.0

Ordering Information
Part No. - Wavelength
For Example, PBS5301 - 900-1200nm
High Extinction PBS 3.2x3.2x3.2mm, 900-1200nm broadband coating
