Anamorphic Prisms

Anamorphic Prisms

Material: ------------------------N-SF11 Grade A optical glass
Dimension Tolerance: -----+0.0, -0.2 mm
Clear Aperture: --------------->80%
Flatness: -----------------------l/8 @633 nm
Theta:-------------------------- q = 29°27'±3"
Surface Quality:--------------60-40 scrach and dig
Coating: -----------------------MgF2 single layer on perpendicular surface


Part No.
A (mm)
B (mm)
C (mm)
FAP0101
12.0
12.0
8.5

Mount of anamorphic prism is available upon requirement.

Note: The prism is counted quantity at every piece. It shall be used as pair (two pieces).

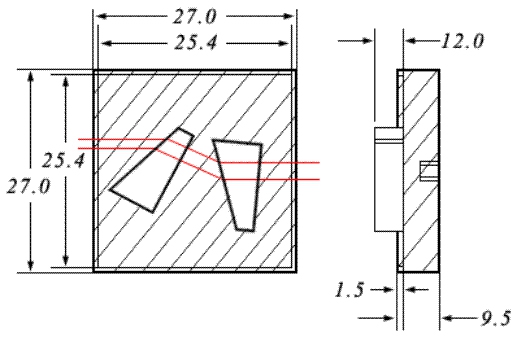

Holders for Anamorphic Prisms

Specifications:
Material:Black anodized aluminum
Dimension Tolerance: +/ -0.1 mm

Part No.
Width (mm)
Height (mm)
Thickness (mm)
APH12
27.0
27.0
9.5
