Quartz Silica Wedge Depolarizer

Quartz Silica Wedge Depolarizer

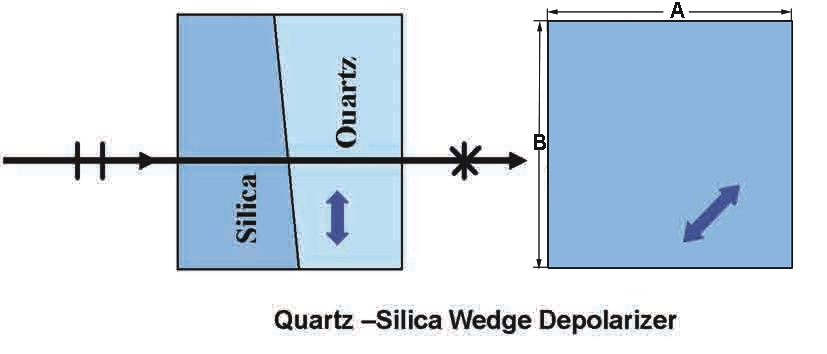

This DQW series of depolarizer consists of a crystalline quartz wedge together with a compensating fused silica wedge to correct the angular deviation. The optic axis of the quartz wedge lies in the plane of the wedge and at 45 deg to the input polarization. The result is then a variable retardation plate over the aperture, which produces depolarization for all wavelengths. So, this DQW depolarizer is thus effective with monochromatic light.


Standard Specifications
Spectral rang (nm): ---------------------------------- 220-1100,1100-2600
Diamter tolerance: ----------------------------------- +0.0/-0.2 mm
Surface Quality: -------------------------------------- 60/40
Flatness @ 632.8nm: ------------------------------- λ/8
Parallelism: -------------------------------------------- <1 min
Beam deviation: -------------------------------------- <3 min
Chip: ---------------------------------------------------- <0.2 mm
Chamfer (bevel): ------------------------------------- <0.5 mm x 45 deg
Peak transmission (%): ---------------------------- 92 (Uncoated)
Coating: ------------------------------------------------ uncoated
Mountter: ---------------------------------------------- unmounted
Max peak power (MW/cm2): --------------------- 300
Max cw power (W/cm2): -------------------------- 100




Coating:  MgF2,Narrow Band or Broad Band AR coating are all available.
Mounter: Black anodized aluminum ring is avaiable.To order mounted depolarizers,simply add the Suffix M to the part no.
