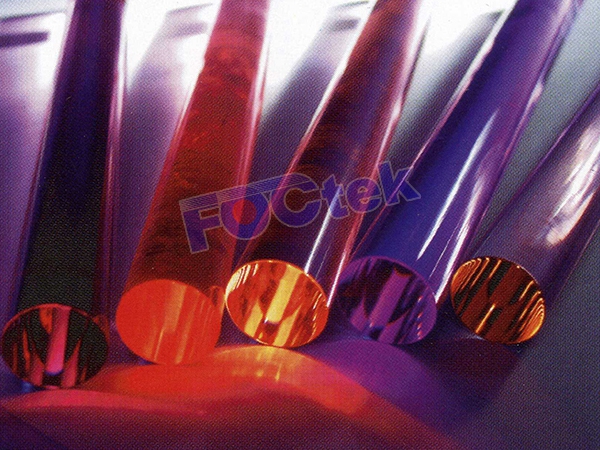

Nd Doped Phosphate Glass have been widely used in high average power laser solid state lasers, laser material processing, range finder and other industrial strial and scientific applications.

LLG mainly offers two types of Nd3+ doped phosphate glasses-N21 and N31. LLG Nd3+ phosphate glasses are guaranteed in optical qualities such as homogeneity, striation, stress birefringence, Pt inclusions etc. The different n eodymium doping phosphate glass are ready for your quest. We have stocked 0.7%, 3.0%, and 4.0% doped N31 and N21.



Laser Properties N21 N31
Nd2O3 (wt%) 2.2 2.2
Nd3+ conc. (1020ions/cm3) 2.68 2.26
Cross section for stimulated
emission (10-20 cm2)
3.40±0.3 4.0±0.3
Life time 330 340±10
Fluorescence half-line width at
290K(A)
240 201
Center lasing wavelength (nm) 1053 1053
Thermal Properties N21 N31
Transformation temp. (C) 500 430
Softening temp. (C) 530 475
Coeff.of linear thermal expansion
(10-6/C) (100 ~Tg  C)
12 122.7
Thermal conductivity (250C) (10-3w/cm C) 5.53 5.58
Specific heat (250C) (J/cmC) 0.75 0.75
Optical Properties N21 N31
Non-linear refractive index
coeff.n2(x10-13 e.s.u)
1.3±0.1 1.1±0.1
n (1053nm) 1.5652 1.1±0.1
nd 1.5758 1.528
nF 1.5731 1.5413
nc 1.582 1.5332
Abbe value 65.3 66.2
dn/dT (10-6/ C) (20 ~ 100 C) -4.2 -4.3
Coeff.of linear thermal expansion
(10-6/C) (20~100 C)
11 10.7
Thermal coeff.of optical path
length (10-6C)  (20~100 C)
1.9 1.4
Chemical Properties N21 N31
Dw (H2O 100  C 1hr) (wt.Loss%) 0.06 0.98
DA (HNO3pH2.2 100  C 1hr)
(wt.loss%)
0.3 0.4
Other Properties N21 N31
Density (g/cm3) 3.4 2.83
Young's modulus (Kgf/mm2) 5647 5270
Posson's ratio 0.27 0.27
Knoop hardness (Kg/cm2) 650 630
